- Use frequency 433,92 – 868,35 MHz
- Type of code: FDS technology
- FDS = FAAC DIGITAL SIGNATURE: Radio protocol based on frequency modulation with top performance in terms of range and battery life; radio transmission is protected with AES-128 symmetric encryption algorithm with 128bit key. The authenticity of the remote controls is verified by means of a chain of FAAC customized security certificates.
- Advantages:
- Maximum security against cloning obtained by the advanced security scheme empowered by the adoption of Secure Vault™ (PSA™ certified Level 3) and TrustZone® hardware technologies: the “state-of-the-art” to secure digital financial transactions and IoT High Security devices/networks.

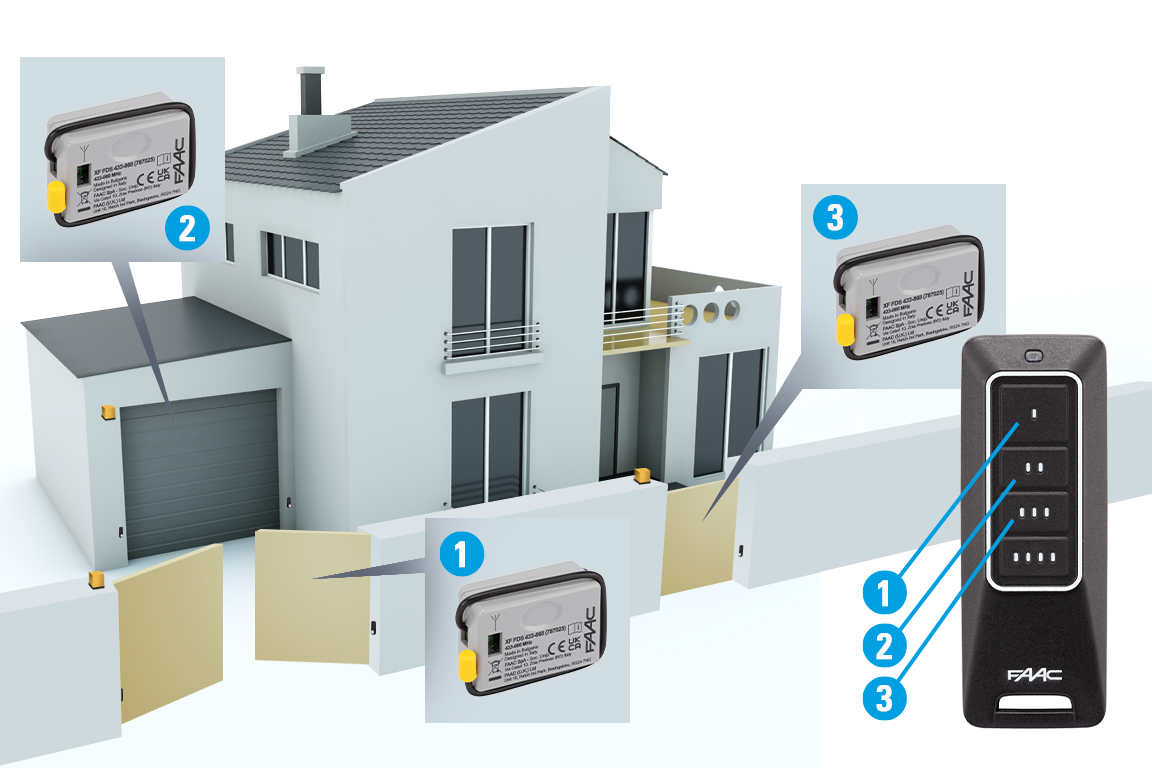

- Double frequency: transmitters and receivers are able to communicate at 868MHz-433MHz in time sharing, no more need to choose the working frequency in advance, thus simplifying the management of installation/maintenance activities.
- Ease of registration: new simplified registration/management procedures of the radio transmitters both via SELF LEARNING and direct registration on the receiver.
- SLH compatible: FDS transmitters can, in case of need, be used on exisiting SLH systems.
- PHYGITAL solution: FDS transmitters are the first FAAC PHYGITAL trasmitters.
- Thanks to the Simply Connect integration the complete remote management can be achieved (addition of individual or group of transmitters via Matrix-Code, possibility to remove, enable, disable transmitters and manage the operating time bands) with no need of using dedicated tools and being onsite.
Frequency module
| Model | Description | Item code |
|---|---|---|
| XF FDS 433-868 | Frequency module | 787025 |
Rapid plug in receiver
| Model | Description | Item code |
|---|---|---|
| XR2N 433-868 | XR2N FDS 433-868 Mhz Receiver | 787023 |
| XR4N 433-868 | XR4N FDS 433-868 Mhz Receiver | 787024 |

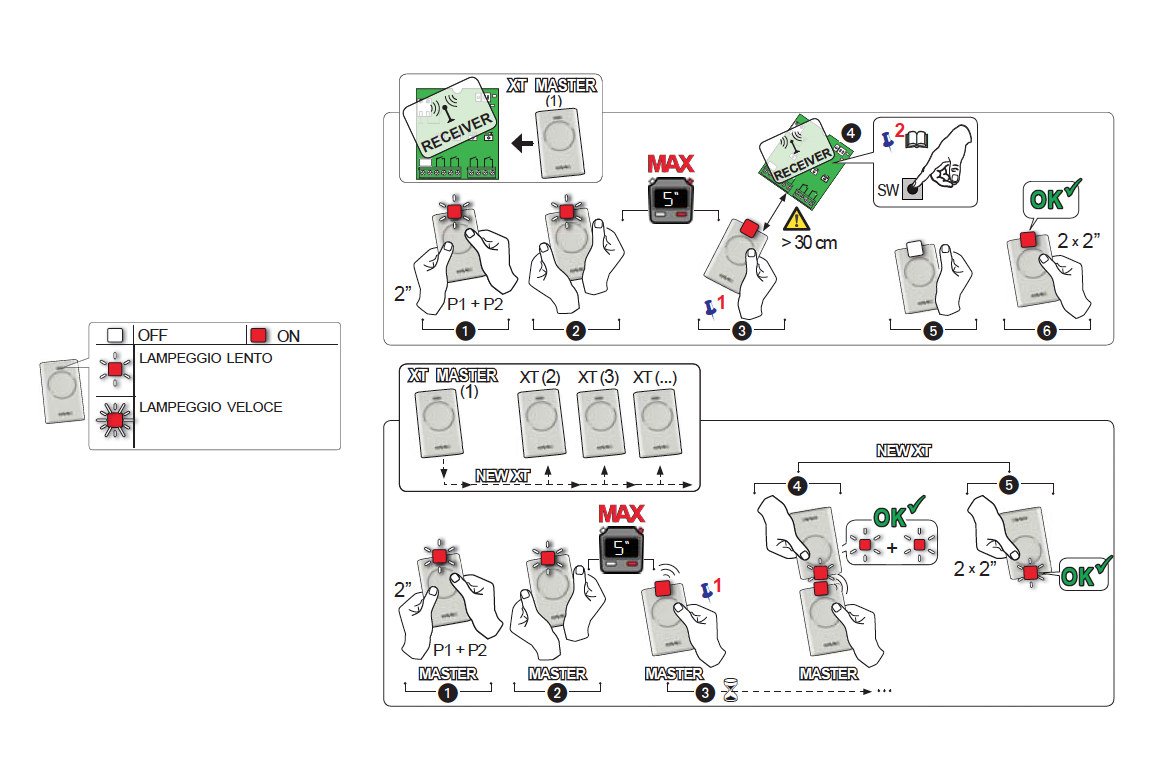

Programming the remote control
Frequently Asked Questions
The key difference is that the FDS System is unidirectional — it receives commands from transmitters but does not send confirmation signals back to the remote. This makes it a more straightforward and cost-effective solution for standard residential and commercial gate access where bidirectional feedback is not a requirement.
Like the FDS BD system, the standard FDS System uses rolling code encryption, where the access code changes automatically after every use. This prevents code-grabbing attacks and ensures that only authorised transmitters can trigger the gate, providing reliable security for your property.
The FDS system is compatible with FAAC transmitters that operate on the 433MHz or 868MHz FDS protocol. We can verify compatibility with your existing remotes or supply new FAAC FDS transmitters programmed and ready to use with the system.
Yes. The FDS receiver integrates with FAAC control boards that manage safety devices, access control systems, and intercom connections. The radio system handles the wireless triggering component, while the control board coordinates all connected devices for a complete and safe gate automation solution.
Absolutely. Urban and suburban environments tend to have higher levels of radio frequency interference from Wi-Fi networks, garage door systems, and other wireless devices. The ability to operate on both 433MHz and 868MHz gives the FDS system better resistance to interference, resulting in more consistent and reliable gate triggering.
