- Use frequency 433,92 MHz
- Type of code: SLH LR technology (FAAC Patent)
- SLH = SELF LEARNING HOPPING code: the code varies whenever the transmitter is used. An algorithm recognizes and confirms the signal, only that of the transmitters coded by the receiver.
- Advantages: cloning almost impossible. Possibility of replicating codified transmitters, even remotely from receivers, with the patented SELF LEARNING system (from transmitter to transmitter), simply by pressing the keys in a specific sequence.
- LR = LONG RANGE: the transmitters can cover almost DOUBLE the current distance thanks to another electronics FAAC patent; the SLH LONG RANGE transmitter, whenever the control buttons are pushed, detects the surrounding environment in real time (e.g. position of the hand, presence of electrical disturbances, etc.) and automatically reconfigures the electronics, maximising the radiated power at each transmission. Fully compatible with previous SLH.

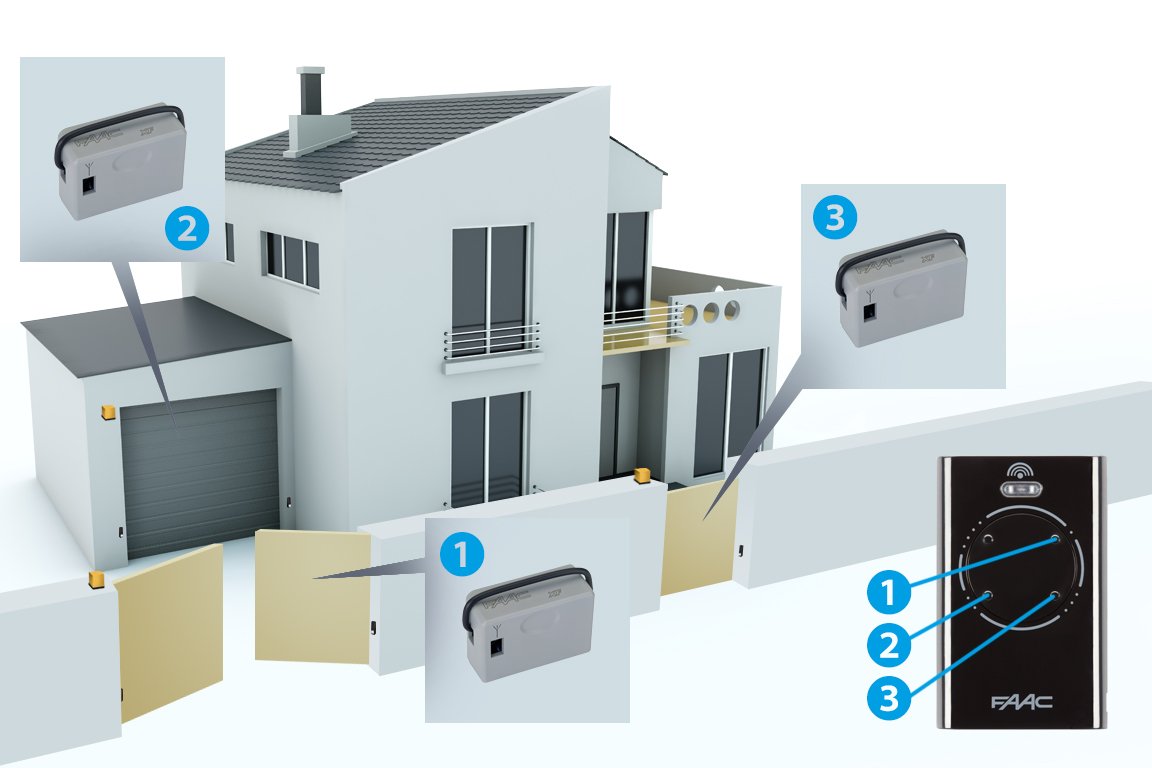

Frequency module
| Model | Description | Item code |
|---|---|---|
| XF 433 | Frequency module | 787831 |

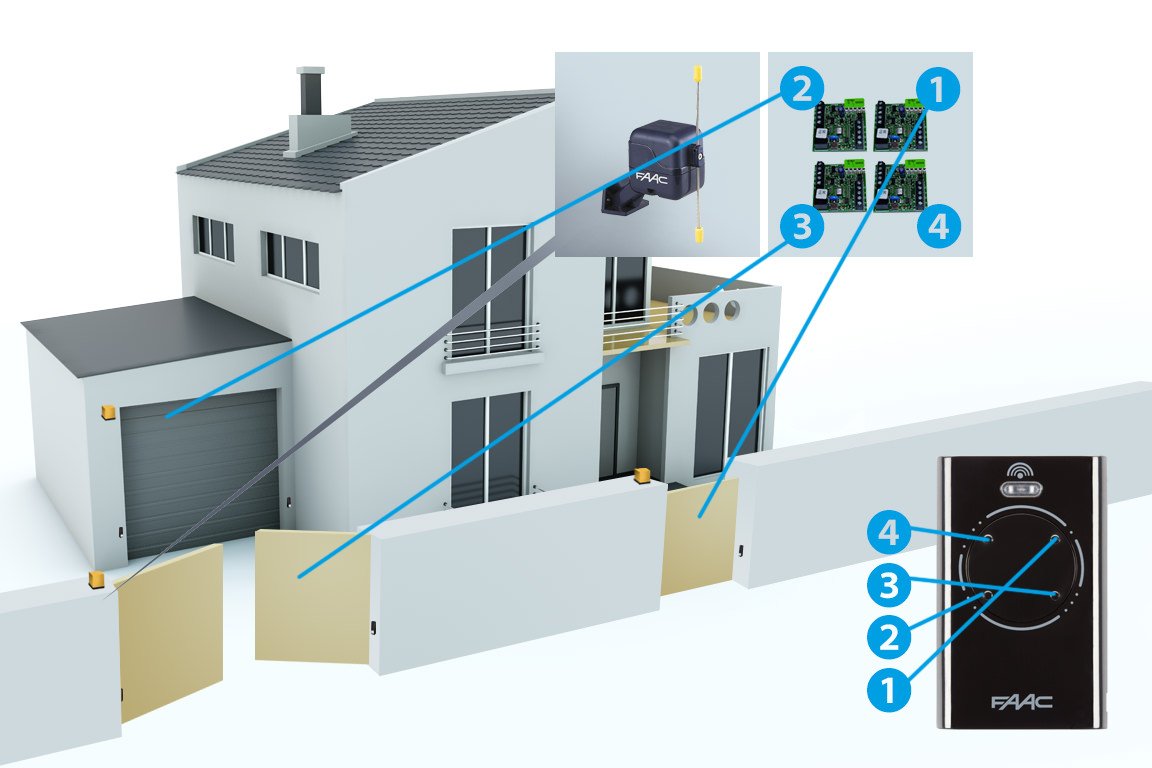

Multi-channel receivers and decoding boards
| Model | Description | Item code |
|---|---|---|
| PLUS1 433 MHz | Multi-channel receiver with integrated dipole antenna (to be combined with decoding board) | 787833 |
| DECODER SLH | Output channel decoder card with “relay” for piloting FAAC control and/or auxiliary devices | 785534 |

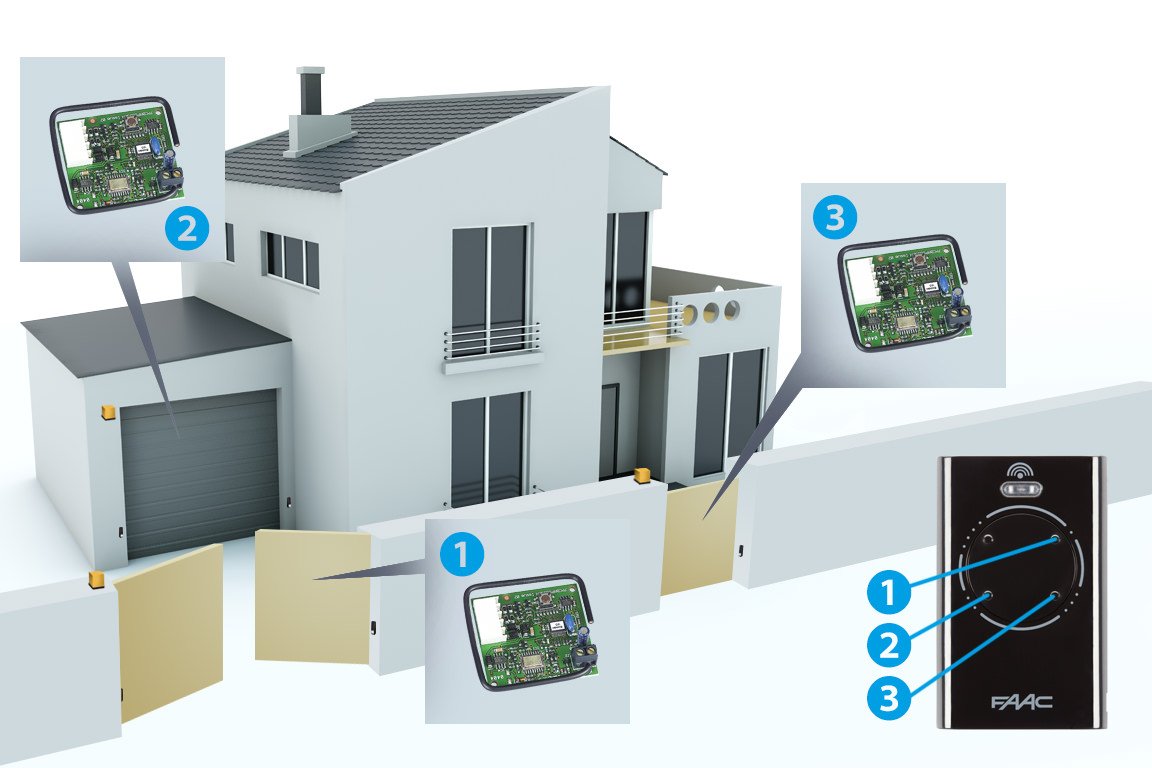

Rapid plug in receiver
| Model | Description | Item code |
|---|---|---|
| RP 433 SLH | 1 channel plug in | 787852 |
| RP2 433 SLH | 2 channels plug in | 787853 |

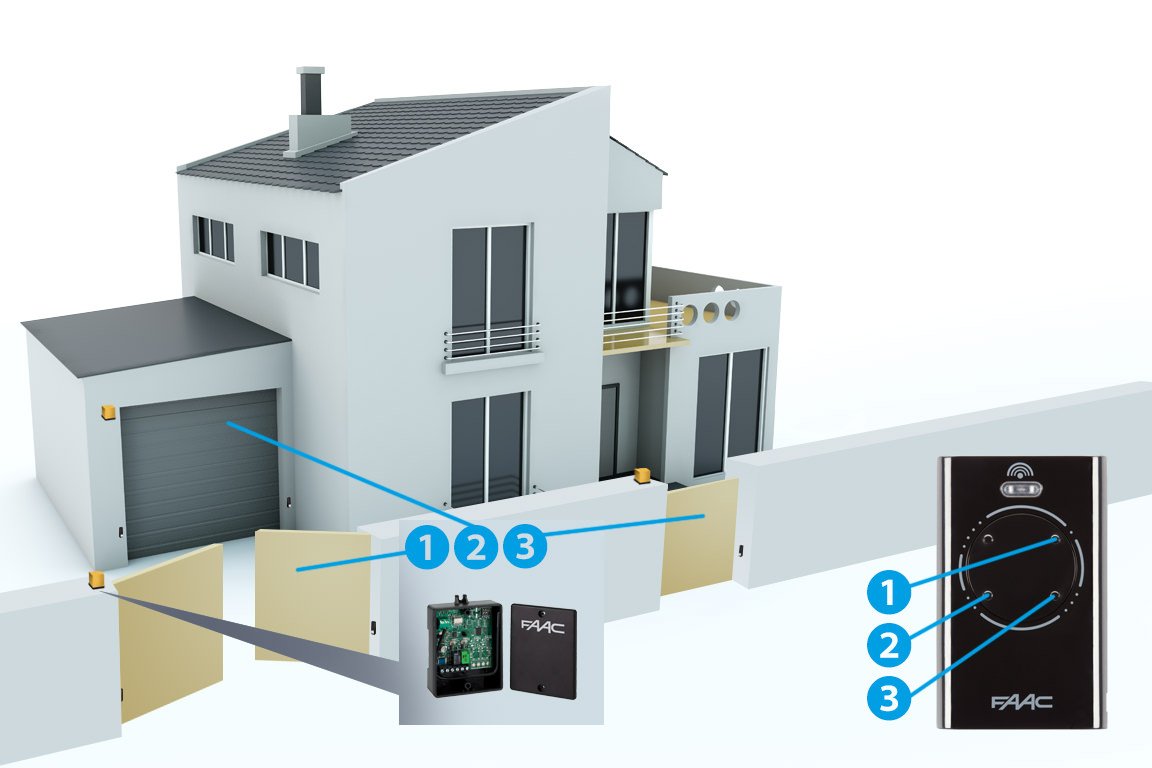

External receiver
| Model | Description | Item code |
|---|---|---|
| XR2 433 C | 2 channels 433 MHz | 787752 |
| XR4 433 C | 4 channels 433 MHz | 787753 |

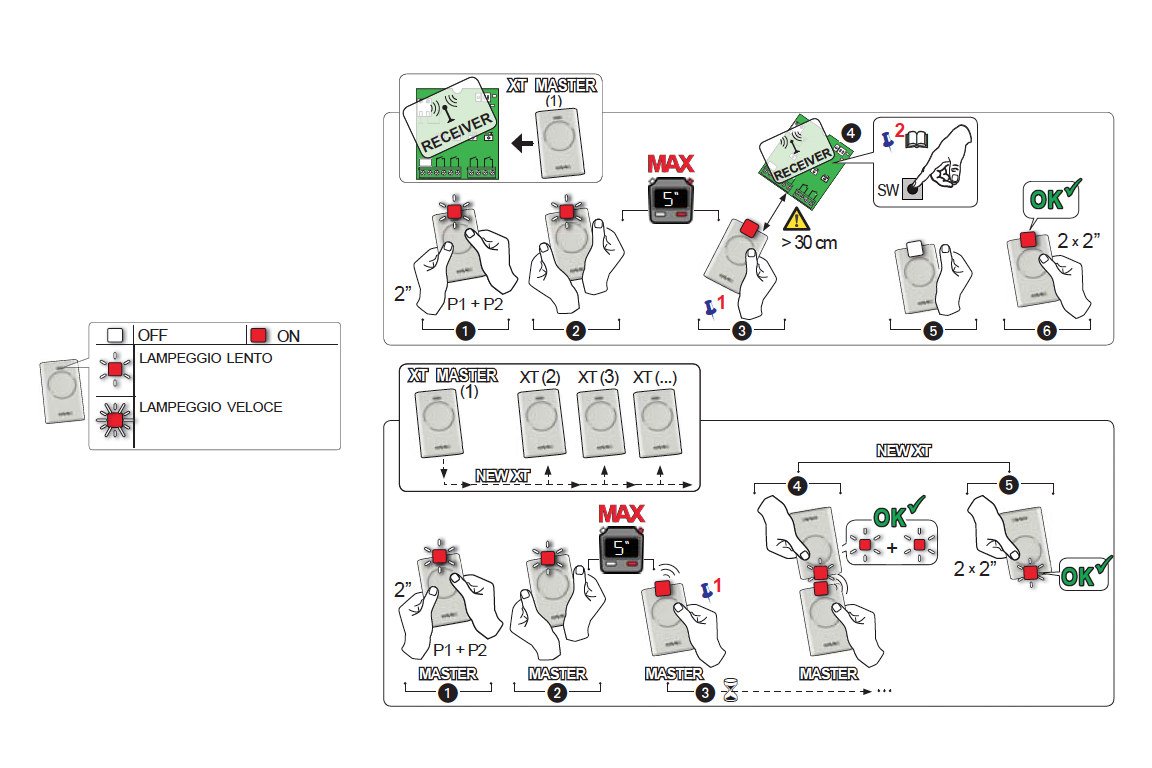

Programming the remote control
Frequently Asked Questions
SLH stands for Serit Long Hop, which is FAAC's high-security rolling code encryption protocol, and LR stands for Long Range. Together, these designations mean the SLH LR System combines advanced security encryption with an extended transmission range — making it the preferred choice for larger properties, long driveways, or sites where the standard RC system's range is insufficient.
The SLH LR System is designed to significantly extend the operational range of the radio control system compared to standard receivers. This makes it ideal for rural properties, estate driveways, commercial sites with large setbacks, or any location where the gate is at a considerable distance from the road or vehicle approach point.
The SLH protocol uses a sophisticated rolling code algorithm that generates a new unique code for every single button press. Even if someone attempted to intercept the transmitted signal, the captured code would already be invalid by the time it could be replayed — providing a very high level of protection against unauthorised access.
The SLH LR System requires SLH-compatible FAAC transmitters to function correctly. It is not cross-compatible with standard fixed-code or non-SLH remotes. We can supply the appropriate SLH transmitters and ensure the entire system is correctly programmed and tested.
Yes. The SLH LR System's long-range antenna design and advanced protocol make it more resistant to interference than basic receiver systems, delivering reliable triggering even in environments with competing wireless signals from industrial equipment, dense suburban infrastructure, or multiple wireless devices in close proximity.
