Family models
| Model | Item code |
|---|---|
| 741 E Z16 with encoder | 1097815 |
Packs
741 includes: an electromechanical gearmotor with 740D control unit, encoder for anti-crushing safety device, pinion for rack, two release keys, foundation plate, limit switch magnets.
- Easy programming thanks to the display and to the prewired control unit
- Magnetic limit switch.
- Integrated encoder with reverse function upon obstacle detection and specific management in opening and slow down

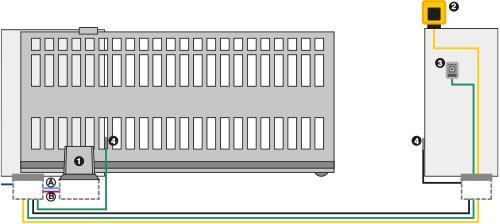

Example of a typical installation
| Ref | Q.ty | Description | Code | |
|---|---|---|---|---|
| 1 | 1 | 741 E Z16 Gearmotor with incorporated electronic control unit | 1097815 | · |
| 1 | 4 | Galvanised rack 30×8 mod. 4 including weld-on fittings (4 pcs pack, 1 m each) | 490123 | |
| 1 | 1 | Plug in receiver 1 channel RP 433 SLH | 787852 | · |
| 2 | 1 | XLED flashing light | 410029 | · |
| 3 | 1 | Key operated button XK10 | 401302 | . |
| 3 | 1 | Lock with key | 71275101 | . |
| 4 | 1 | Pair of photocells XP 20D | 785102 | · |
| 1 | 2 channels transmitter XT2 433 SLH LR | 787007 | · |
Dimensions and technical specifications
| Model | 741 E Z16 with encoder |
|---|---|
| Power supply voltage | 220-240V~ 50/60 Hz |
| Electric motor | Asynchronous single phase |
| Max. power | 500 W |
| Max. torque | 24 Nm (*) |
| Max expressed force | 650 N (*) |
| Reduction ratio | 1:25 |
| Max. leaf width | 15 m |
| Leaf speed | 12 m/min |
| Speed adjustment and motor control | No |
| Limit switch | Magnetic |
| Pinion | Z16 module 4 |
| Encoder | Optical encoder |
| Force adjustment | Via electronic control board |
| Operating ambient temperature | -20°C ÷ +55°C |
| Thermal protection | 140°C |
| Protection class | IP44 |
| Weight | 11 Kg |
| Dimensions (LxDxH) | 295 x 181 x 320 mm |
| Max. leaf weight | 900 Kg |
| Use frequency | S3 – 40% |
| Electronic equipment | 740D incorporated |
(*) data referred to 230V~ 50Hz.
Add To Cart
Frequently Asked Questions
The FAAC 741 is a step up from the 740, offering greater thrust force and the ability to handle heavier or wider sliding gate leaves. It is suited for properties where the gate demand is slightly more intensive than what the 740 is rated for.
Yes. While it is still appropriate for larger residential gates, the FAAC 741's increased capacity makes it equally suitable for light commercial applications such as small business premises, warehouses, and gated car parks.
The FAAC 741 is rated for heavier gate leaves than the 740. We can confirm the exact maximum weight rating and advise whether it is the right match for your specific gate dimensions and material.
Yes. The FAAC 741 works with a compatible control board that supports loop detectors, photocells, remote controls, and other automation accessories for a fully automated and safe entry system.
Yes, the FAAC 741 is built with a duty cycle that accommodates regular, frequent use. For very high-traffic environments, we can advise on whether a heavier-duty model would be more appropriate.
