746 E R
230V Gearmotor
| Max. leaf weight | Max speed | Use frequency |
|---|---|---|
| 400 – 600 Kg | 9,6 – 12 m/min. | 70% |
Family models
| Model | Item code |
|---|---|
| 746 E R Z16 | 109776 |
| 746 E R Z20 | 109773 |
Packs
746 E R Z16 and ER Z20, designed for on-rack applications include: a gearmotor with pinion and 780D control unit, limit switch magnets, release key, covering carters.
- Maximum anti-crushing safety by coupling the twin-disk oil-bath clutch with the electronic device and encoder.
- Magnetic limit switch.
- Designed for height and side adjustable fastening.

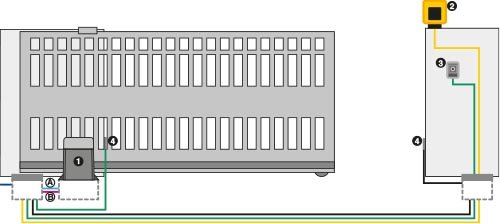

Example of a typical installation
| Ref | Q.ty | Description | Code | |
|---|---|---|---|---|
| 1 | 1 | 746 E R Z16 Gearmotor with incorporated electronic control unit and encoder | 109776 | · |
| 1 | 1 | Foundation plate with lateral and height adjustments (6 pc. pack) | 737816 | |
| 1 | 4 | Galvanised rack 30×12 mod. 4 including weld-on fittings (4 pcs pack, 1 m each) | 490122 | |
| 1 | 1 | Plug in receiver 1 channel RP 433 SLH | 787852 | · |
| 2 | 1 | XLED flashing light | 410029 | · |
| 3 | 1 | Key operated button XK10 | 401302 | . |
| 3 | 1 | Lock with key | 71275101 | . |
| 4 | 1 | Pair of photocells XP 30 | 785105 | · |
| 1 | 2 channels transmitter XT2 433 SLH LR | 787007 | · |
Dimensions and technical specifications
| Model | 746 E R Z16 | 746 E R Z20 |
|---|---|---|
| Power supply voltage | 220-240V~ 50/60 Hz | |
| Electric motor | Asynchronous single phase | |
| Max. power | 400 W | |
| Max. torque | 26 Nm (*) | |
| Max expressed force | 810 N (*) | 650 N (*) |
| Reduction ratio | 1:30 | |
| Max. leaf width | 40 m | 50 m |
| Leaf speed | 9.6 m/min | 12 m/min |
| Speed adjustment and motor control | No | |
| Limit switch | Magnetic | |
| Pinion | Z16 module 4 | Z20 module 4 |
| Encoder | Magnetic encoder | |
| Force adjustment | Twin-disk clutch in oil-bath and via board | |
| Operating ambient temperature | -20°C ÷ +55°C | |
| Thermal protection | 120°C | |
| Protection class | IP44 | |
| Weight | 14 Kg | |
| Type of oil | FAAC HP OIL | |
| Dimensions (LxDxH) | 277 x 155 x 337 mmc | |
| Max. leaf weight | 600 Kg | 400 Kg |
| Use frequency | 70% | |
| Electronic equipment | 780D incorporated |
(*) data referred to 230V~ 50Hz.
