844 E R
230V Gearmotor
| Max. leaf weight | Max speed | Use frequency |
|---|---|---|
| 1.800 Kg | 9,5 – 12 m/min. | 70 % |
Family models
| Model | Item code |
|---|---|
| 844 E R Z16 | 109837 |
| 844 R | 109838 |
Packs
844 E R Z16 , designed for on-rack applications, includes: a gearmotor with pinion and 780D control unit, limit switch magnets, release key, covering carters.
844 R , designed for on-rack applications, includes: a gearmotor without pinion and control unit, inductive limit switch, release key, covring carters
- Maximum anti-crushing safety by coupling the twin-disk oil-bath clutch with the electronic device and encoder.
- Magnetic limit switch.
- Designed for height and side adjustable fastening.

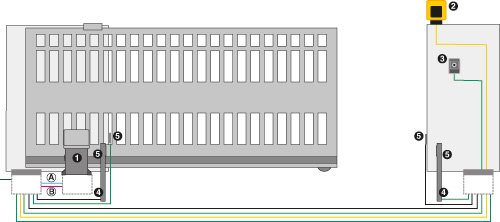

Example of a typical installation
| Ref | Q.ty | Description | Code |
|---|---|---|---|
| 1 | 1 | 844 E R Z16 Gearmotor | 109837 |
| 1 | 1 | Foundation plate with lateral and height adjustments (6 pc. pack) | 737816 |
| 1 | 4 | Galvanised rack 30×12 mod. 4 including weld-on fittings (4 pcs pack, 1 m each) | 490122 |
| 1 | 1 | Plug in receiver 1 channel RP 433 SLH | 787852 |
| 2 | 1 | XLED flashing light | 410029 |
| 3 | 1 | Key operated button XK10 | 401302 |
| 3 | 1 | Lock with key | 71275101 |
| 4 | 2 | Low column in aluminium (2 pcs. pack) | 401028 |
| 4 | 2 | Foundation plate for aluminium column | 737630 |
| 5 | 2 | Pair of photocells XP 30 | 785105 |
| 5 | 2 | Adaptors for wall columns | 401065 |
| 1 | 2 channels transmitter XT2 433 SLH LR | 787007 |
Dimensions and technical specifications
| Model | 844 E R Z16 |
|---|---|
| Power supply voltage | 220-240V~ 50/60 Hz |
| Electric motor | Asynchronous single phase |
| Max. power | 660 W |
| Max. torque | 37 Nm (*) |
| Max expressed force | 1.160 N (*) |
| Reduction ratio | 1:30 |
| Max. leaf width | 40 m |
| Leaf speed | 9.5 m/min |
| Speed adjustment and motor control | No |
| Limit switch | Magnetic |
| Pinion | Z16 module 4 |
| Encoder | Magnetic encoder |
| Force adjustment | Twin-disk clutch in oil-bath and via board |
| Operating ambient temperature | -20°C ÷ +55°C |
| Thermal protection | 120°C |
| Protection class | IP44 |
| Weight | 14.5 Kg |
| Type of oil | FAAC HP OIL |
| Dimensions (LxDxH) | 277 x 155 x 388 mm |
| Max. leaf weight | 1.800 Kg |
| Use frequency | 70% |
| Electronic equipment | 780D incorporated |
(*) data referred to 230V~ 50Hz.
Add To Cart
Frequently Asked Questions
The FAAC 844 E R is a heavy-duty sliding gate motor designed for large residential gates and demanding commercial or industrial applications. It is built to handle substantial gate weights and high daily usage cycles reliably.
The encoder provides real-time position and speed data to the control board, enabling precise soft start and stop, accurate travel limit programming, and responsive obstacle detection — all contributing to safer and smoother gate operation.
The FAAC 844 E R is rated for significantly heavier gate leaves than residential-grade motors. It is engineered for gates found in commercial premises, industrial sites, and large estate properties. We can confirm the exact weight capacity for your specific gate.
Absolutely. The FAAC 844 E R is built with a high duty cycle, meaning it can handle the large number of open and close cycles typical of busy commercial entrances, car parks, and gated facilities without performance degradation.
The FAAC 844 E R is designed to work with FAAC's advanced 844 series control boards, which fully utilise the encoder's capabilities. We can supply and configure the complete system, including the control board, safety devices, and access control accessories.
