Family models
| Model | Item code |
|---|---|
| 844 R Reversible | 109897 |
Packs
844 R Reversible includes: a gearmotor designed for on-rack application with pinion, limit switch magnets for mechanical assembly, release key, covering carters.
- Reversible: when no power is supplied to the motor, the sliding leaf can always be moved manually.
- An electric lock is needed to grant hold in closing.
- Twin-disk clutch in oil-bath (anti-crushing safety device)
- Inductive limit switch
- Key protected lever release device.
- for gates with max weight 1000 Kg

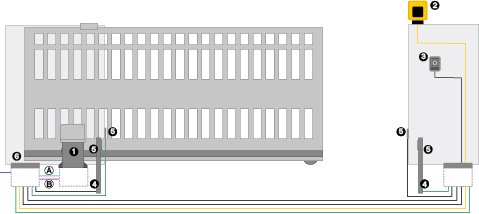

Example of a typical installation
| Ref | Q.ty | Description | Code |
|---|---|---|---|
| 1 | 1 | 844 R Z12 Reversible Gearmotor | 109897 |
| 1 | 1 | Foundation plate with lateral and height adjustments (6 pc. pack) | 737816 |
| 1 | 4 | Galvanised rack 30×12 mod. 4 including weld-on fittings (4 pcs pack, 1 m each) | 490122 |
| 2 | 1 | XLED flashing light | 410029 |
| 3 | 1 | Key operated button XK10 | 401302 |
| 3 | 1 | Lock with key | 71275101 |
| 4 | 2 | Pair of photocells XP 30 | 785105 |
| 5 | 2 | Adaptors for wall columns | 401065 |
| 4 | 2 | Low column in aluminium (2 pcs. pack) | 401028 |
| 5 | 2 | Foundation plate for aluminium column | 737630 |
| 6 | 1 | 578 D electronic control unit (remote installation) | 790922 |
| 6 | 1 | Enclosure mod. L for electronic control units | 720118 |
| 6 | 1 | Plug in receiver 1 channel RP 433 SLH | 787852 |
| 1 | 2 channels transmitter XT2 433 SLH LR | 787007 |
Dimensions and technical specifications
| Model | 844 R Reversible |
|---|---|
| Power supply voltage | 220-240V~ 50/60 Hz |
| Max. power | 550 W |
| Traction and thrust force | 0÷68 daN (Z12) |
| Motor rotation speed | 750 cycles/min |
| Reduction ratio | 1:10 |
| Operating ambient temperature | -20°C ÷ +55°C |
| Weight | 14.5 Kg |
| Protection class | IP 44 |
| Type of oil | FAAC HP OIL |
| Max speed | 11,6 m/min (Z12) |
| Thermal protection | 140°C |
| Limit switch | Magnetic |
| Twin-disk | Twin-disk in oil-bath |
| Type of treatment | Cataphoresis |
| Dimensions (LxDxH) | 277 x 155 x 388 mm |
| Max. leaf weight | 1.000 kg |
| Use frequency | 70% |
| Electronic equipment | Not included |
(*) data referred to 230V~ 50Hz.
Add To Cart
Frequently Asked Questions
The reversible function means the motor can be configured to drive the gate in either direction, offering greater flexibility in installation. This is particularly useful when the gate motor needs to be mounted on either the left or right side of the gate opening.
The FAAC 844 R Reversible focuses on installation flexibility through its reversible drive capability, while the 844 E R adds encoder-based precision control. Both are heavy-duty 230V motors, but the choice depends on whether your priority is installation adaptability or advanced positional control.
Yes. Like the rest of the 844 series, the FAAC 844 R Reversible is designed for heavy-duty applications and is suitable for demanding commercial settings with large, heavy sliding gates and frequent daily operation.
Yes. It is compatible with FAAC control boards that support photocells, safety edges, loop detectors, and other safety accessories, ensuring the gate system meets Australian safety standards for automated gates.
The reversible drive eliminates the need to physically reposition the motor housing to suit the gate's layout. Installers can simply reconfigure the drive direction electronically, saving time during installation and offering more versatile placement options on site.
