C720
Low voltage 24V gearmotor
| Max. leaf weight | Max speed | Use frequency |
|---|---|---|
| 400 Kg | 18 m/min. | Continuous use |
Family models
| Model | Item code |
|---|---|
| C720 24V | 109320 |
Packs
C720 includes: a low voltage electromechanical operator with E721 electronic control unit, pinion for rack, release key, foundation plate.
- New patented FAAC reduction principle: very high output (> 80%) and energy efficiency.
- Magnetic limit switch.
- Electronic control unit with anti-crushing device and electronic encoder with reverse function upon detection of obstacle.

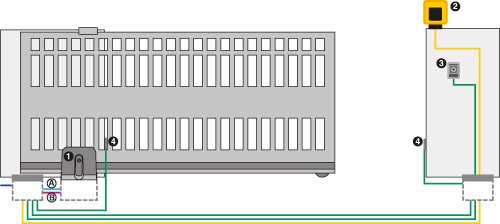

Example of a typical installation
| Ref | Q.ty | Description | Code | |
|---|---|---|---|---|
| 1 | 1 | C720 Gearmotor with incorporated electronic equipment and foundation plate | 109320 | · |
| 1 | 4 | 30×20 mod.4 nylon rack with steel core (4 pcs pack, 1 m each) | 490333 | |
| 1 | 1 | XF 433 MHz receiver | 787831 | · |
| 2 | 1 | XLED flashing light | 410029 | · |
| 3 | 1 | Key operated button XK10B | 401304 | . |
| 3 | 1 | Lock with key | 71275101 | . |
| 4 | 1 | Pair of photocells XP 20 BD | 785103 | · |
| 1 | 2 channels transmitter XT2 433 SLH LR | 787007 | · |
Dimensions and technical specifications
| Model | C720 24V |
|---|---|
| Power supply voltage | 220-240V~ 50/60 Hz |
| Electric motor | Brush motor 24V |
| Max. power | 170 W |
| Max. torque | 18 Nm |
| Max expressed force | 320 N |
| Reduction ratio | 1:49 |
| Max. leaf width | 15 m |
| Leaf speed | 18 m/min (adjustable) |
| Speed adjustment and motor control | Yes – electronic adjustment |
| Limit switch | Magnetic |
| Pinion | Z28 module 4 |
| Encoder | Electronic encoder |
| Force adjustment | Via electronic control board |
| Operating ambient temperature | -20°C ÷ +55°C |
| Protection class | IP44 |
| Weight | 8 Kg |
| Dimensions (LxDxH) | 304 x 180 x 282 mm |
| Max. leaf weight | 400 Kg |
| Use frequency | 100 % |
| Electronic equipment | Incorporated E721 |
Add To Cart
Frequently Asked Questions
Operating on 24V DC means the C720 is safer to install in outdoor environments, is less hazardous to work on during servicing, and is compatible with battery backup and solar power systems — making it an excellent choice for properties where energy efficiency and power flexibility are important.
The FAAC C720 is suitable for light-to-medium-weight residential sliding gates. It is designed to provide smooth and reliable operation for standard home driveway gates without the need for high-voltage power infrastructure.
Yes. The 24V DC system is fully compatible with solar panel and battery setups, making the C720 an ideal solution for remote properties, rural homes, or any location where connecting to mains power is costly or impractical.
When paired with a compatible 24V battery backup, the C720 continues to operate normally during power outages. This ensures uninterrupted gate access regardless of grid power availability — an important safety and convenience feature.
Yes. The C720 works with FAAC's range of compatible control boards and accessories, including remote transmitters, keypads, intercoms, and smartphone-based access systems, allowing it to be part of a modern, connected gate automation setup.
