Say “hello” to the new look of go-anywhere security and convenience.
The G-SPEAK ULTRA Intercom Gate Station is now available in a bold and modern metal design, that not only enhances aesthetic appeal, but offers improved tamper protection.
The brand new Metal Gate Station makes for a beautiful addition to your gate, while simultaneously delivering a security upgrade thanks to its rugged construction that offers exceptional protection against tampering and vandalism.
FEATURES AND BENEFITS
Answer your intercom from anywhere, using your cellular device
– enhanced security and convenience
-
- No messy and expensive wiring
- 1, 2 or 4 call buttons with the ability to add two numbers per button and Time Barring configurable per button (for example; automatically disable primary button at night)
- Backlit button(s)
- Rugged aluminium enclosure
1. Requires a Gooseneck backing plate to maintain IP rating.
| Technical Data | METAL GATE STATION1 | |
|---|---|---|
| Operating voltage2 | 7.4V DC as supplied by the G-SPEAK ULTRA3 | |
| Current draw | 11mA | |
| Speech volume | Adjustable via G-WEB | |
| Wiring | 6 wire connection (power, audio and mic) | |
| Ring tone | Electronic when button is depressed | |
| Call confirmation | Yes | |
| Call buttons | 1, 2 or 4 (illuminated with labels) | |
| Operating temperature | -20°C to +50°C | |
| Humidity | 0 – 90% non-condensing | |
| Degree of protection | IP544 | |

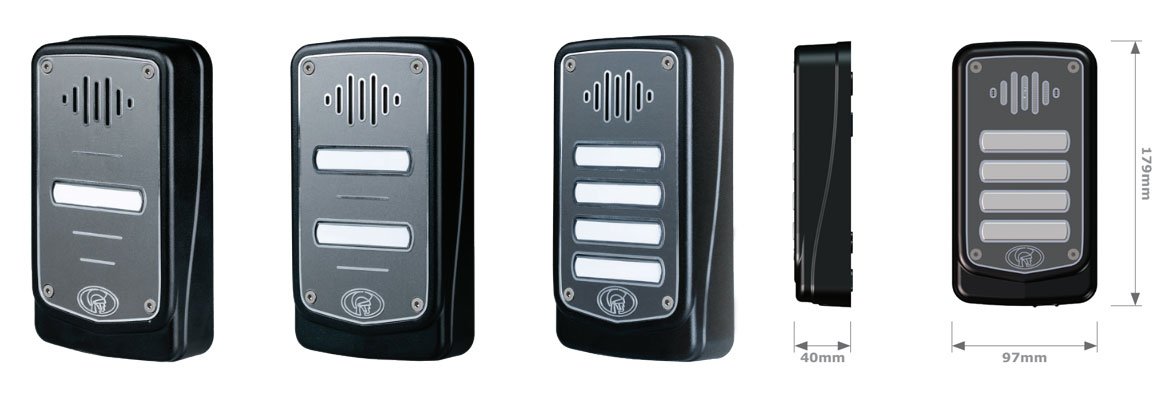

| Dimensions | 97mm wide x 40mm deep x 178mm high |
- Requires a G-SPEAK ULTRA device, as the Gate Station cannot be used on its own.
- If the 12V DC gate motor supply dips when the motor starts up and the intercom is being used at the same time, the speech quality might be affected.
- The Gate Station must only be powered via a G-SPEAK ULTRA Device.
- A Gooseneck backing plate is required when mounting onto a Gooseneck, to maintain IP rating.
Frequently Asked Questions
The CENTSYS Metal Gate Station is a robust housing solution designed to protect and securely mount gate automation components. It ensures durability, safety, and organised installation for residential and commercial gate systems.
It is designed primarily for CENTSYS automation systems but can support compatible gate motors depending on configuration. Professional assessment is recommended to ensure proper fit and optimal performance.
The station is typically made from high-quality metal designed for strength, weather resistance, and long-term durability. This ensures reliable protection for internal gate automation components in various environments.
Minimal maintenance is required, but periodic inspections are recommended. Checking for corrosion, loose fittings, and structural integrity helps ensure long-lasting performance and continued protection of gate automation equipment.
It is commonly used in residential, commercial, and industrial gate automation setups. It provides secure housing for control systems, ensuring protection and stable operation in different installation environments.
