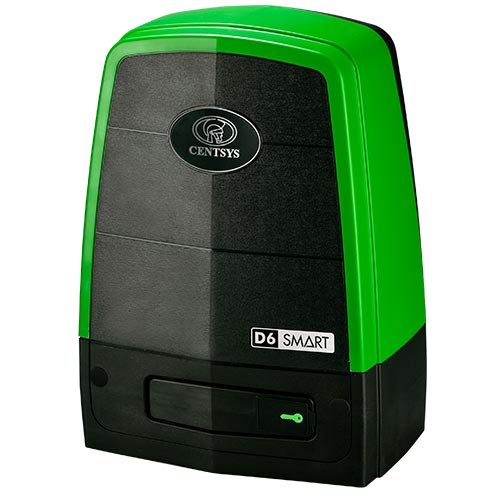

Make Your Life Easier with the New D6 SMART Gate Motor
Taking what we’ve learned through more than 30 years of being the market leader in access automation, we are bringing you a solution that gives you everything from intelligent reporting to easy mobile-based setup and operation.
With unsurpassed convenience and control at your fingertips, you’ll love using the D6 SMART.
Innovative Technological Features
- Onboard multichannel NOVA receiver with 1500 button memory
- Wireless and effortless – easy setup and configuration from your smartphone
- 24V system capable of performing more operations and offering extended battery backup and power failure autonomy
- New and improved theft-resistant cage with a patented design offering outstanding security and peace of mind
- Vibration sensor that can be connected to a third party device to notify you in the event that the gate motor is being tampered with
- Intelligent battery charger with onboard diagnostics and SMART communication between the charger and the controller
- Improved position control system incorporating hall effect technology – highly resistant to interference
- Individually-configurable inputs and outputs
- Convenient and intuitive single-action manual release
| Technical Data | D6 SMART |
|---|---|
| Input voltage 1 | 90V - 240V AC +/-10% @ 50Hz |
| Current consumption (Mains) | 200mA |
| Battery charger current output | 1.3A |
| Maximum number of operations per day | 150 |
| Motor voltage | 24V DC |
| Motor power supply 5 | Battery-driven (Standard Capacity - 2x12V) |
| Current consumption (motor at rated load) | 13A |
| Input / Output sink currents (Max accessory current draw) | |
| I/O 1-4 | 100mA (12/24V) |
| I/O 5 and 6 | 3A (12/24V) 10sec Pulse |
| Motor push force - starting | 30kgf |
| Motor push force - rated | 17kgf |
| Gate mass - maximum | 600kg |
| Gate length - maximum | 100m |
| Gate speed (varies with load) | 35m/min (583mm per second) @ 17kgf |
| Manual Override | Lockable with key release |
| Operations in standby with 2 x 7Ah (28W) battery | |
| Half day 5,6 | 125 |
| Full day 5,6 | 120 |
| Collision Sensing | Electronic |
| Operating temperature range | -15°C to +50°C |
| On-board receiver type | Code-hopping multichannel receiver with selective add and delete |
| Receiver code storage capacity7 | 1500 Remotes |
| Receiver frequency | 433.92MHz |
| Degree of protection | IP55 |
| Mass of unit packed (with standard kit, but excl. rack and battery) | 9.1kg |
| Packaging dimensions (with standard kit, but excl. rack and battery) | 325mm wide x 244mm deep x 445mm high |
- Can operate off a solar supply, consult your local dealer for assistance
- Based on 25°C ambient temperature and unit not in direct sunlight
- Based on a motor push force of less than 50% of rated (Starting and Running forces)
- Gate opening and closing speeds can be configured to run slower depending on the requirements of individual installations
- Can increase battery capacity for longer standby times
- Based on 4m gate, excluding all accessories
- Multiple buttons per remote can be used
Add To Cart
Frequently Asked Questions
The D6 SMART gate motor is designed for domestic and light-industrial sliding gates. It offers dependable performance, smooth operation, and the capability to handle frequent daily usage efficiently.
The D6 SMART includes intelligent obstruction detection that helps prevent accidents and damage. When an obstacle is detected during operation, the gate responds accordingly to enhance user safety.
Yes, the D6 SMART is equipped with a battery-driven system that allows the gate to continue operating during power failures, ensuring uninterrupted access and improved convenience.
Yes, the D6 SMART supports advanced connectivity features that allow users to integrate compatible remote access solutions for greater control, monitoring, and day-to-day convenience.
Homeowners value the D6 SMART for its reliability, intelligent technology, energy-efficient design, and ability to provide secure, hassle-free automation for residential properties.
