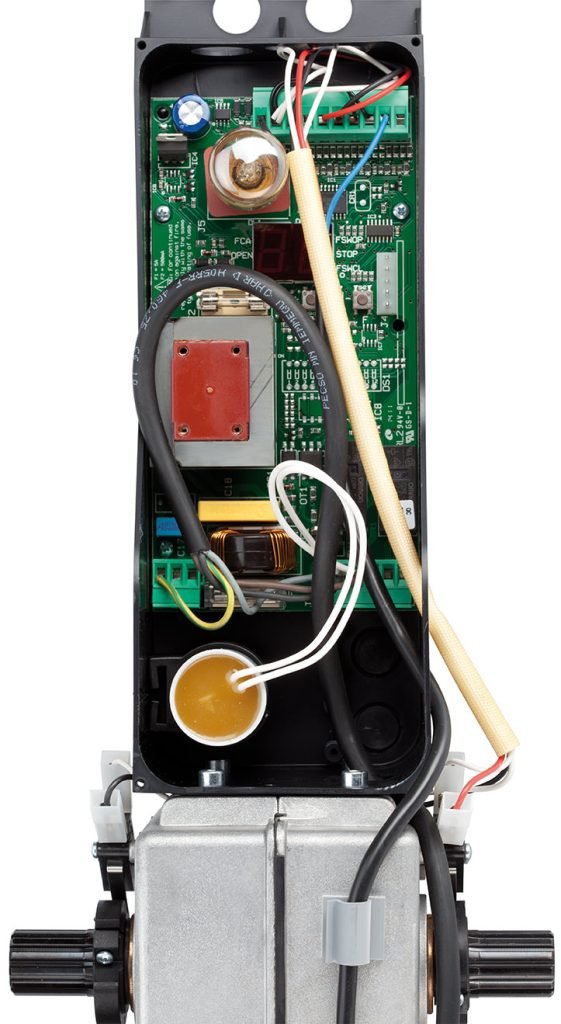

- To be used with operators for up and over with counterweights doors 550.
Dimensions and technical specifications
| Model | E550 |
|---|---|
| Power supply voltage | 220-240V~ 50/60 Hz |
| Max. power | 12 W |
| Motor max power | 800 W |
| Incorporated courtesy lamp max power | 25 W |
| External courtesy light max power | 250 W |
| Max. accessories load | 300 mA |
| Accessories power supply | 24V |
| Terminal boards | Removable |
| Terminal board inputs | Open, Encoder, Closing and opening safety devices, Opening limit switches, Closing limit switches, 230 Vac – 60 W flashing lamp |
| Terminal board outputs | Motor, External courtesy lamp 230V~, |
| Rapid connector | 5-pin board insertion, MINIDEC, Decoder or RP receiver, RP/RP2 |
| Protection Fuses | Network circuit / accessories |
| Operating ambient temperature | -20°C ÷ +55°C |
Add To Cart
Frequently Asked Questions
The FAAC E550 is an advanced electronic control unit designed for FAAC sliding gate motors, particularly suited to demanding residential and commercial applications. It offers a comprehensive set of programmable features and a wide range of input/output connections, making it one of the more capable control units in FAAC's accessory range for sliding gate automation.
The E550 supports encoder-compatible motor management, which uses real-time positional feedback to precisely control the gate's acceleration, deceleration, and stopping position throughout every cycle. This results in exceptionally smooth gate movement, reduced mechanical stress on the motor and rack, and more accurate travel limit performance compared to non-encoder control units.
The E550's high duty cycle tolerance, advanced programmability, and extensive connectivity make it well suited to commercial environments where the gate operates frequently throughout the day. Its robust design ensures reliable performance under the sustained operational demands of car parks, warehouse entries, industrial facilities, and gated commercial premises.
The E550 features multiple dedicated input and output terminals supporting photocells, safety edges, loop detectors, warning lights, radio receivers, keypads, card readers, intercom systems, and third-party access control triggers. This broad compatibility allows the E550 to serve as the central control hub for a fully integrated and highly secure gate automation system.
Yes. The E550 offers selectable operational modes including standard open/close, step-by-step, deadman, and partial opening for pedestrian access. These modes can be programmed and adjusted to suit the specific security and convenience requirements of each property, from a simple residential driveway to a complex commercial access point. We handle all configuration and commissioning as part of the installation service.
