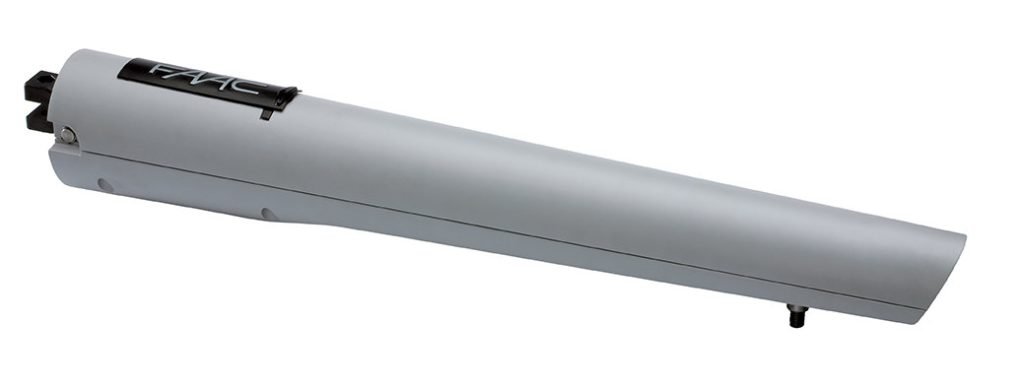

S418
24V Electromechanical operator
Max width single leaf
2,3 – 2,7 m (with electric lock)
Use frequency
Continuous use
- Adjustable high speed.
- New “multi-position” fixing bracket for non-welded installation.
- Integrated opening and closing mechanical stops (possibility to avoid anti-crushing device installation).
Family models
| Model | Item code |
|---|---|
| S418 24V | 104301 |
Packs
S418 includes: an electromechanical operator, accessories for installation, a release key.
Example of a typical installation
| Ref | Q.ty | Description | Code | |
|---|---|---|---|---|
| 1 | 2 | 24V S418 Operators | 104301 | · |
| 2 | 1 | XLED flashing light | 410029 | . |
| 3 | 1 | Key operated button XK10B | 401304 | . |
| 3 | 1 | Lock with key | 71275101 | . |
| 4 | 1 | Electronic control board E024S | 790286 | · |
| 4 | 1 | XF 433 MHz receiver | 787831 | · |
| 5 | 1 | Pair of photocells XP 20 BD | 785103 | · |
| 1 | 2 channels transmitter XT2 433 SLH LR | 787007 | · |
Dimensions and technical specifications
| Model | S418 24V |
|---|---|
| Power supply voltage | 220-240V~ 50/60 Hz |
| Electric motor | With brushes 24V |
| Max. power | 35 W |
| Max expressed force | 1800 N |
| Rod max speed | 37 mm/s (con E124) |
| Rod travel | 350 mm (390 mm without stops) |
| Max. leaf opening angle | 110° |
| Operating ambient temperature | -20°C ÷ + 55°C |
| Protection class | IP54 |
| Weight | 6 Kg |
| Use frequency | Continuous use |
| Max. leaf width | 2.3 m (2.7 m with electric lock) |
| Mounting brackets | Rear attachment to be screwed and adjustable – front attachment to be screwed and adjustable |
| Dimensions (LxDxH) | 823 x 104 x 137 mm |
| Electronic equipment | Not included |
Add To Cart
Frequently Asked Questions
The FAAC S418 is a compact and efficient 24V electromechanical swing gate operator that offers a practical combination of safe low-voltage operation, reliable performance, and compatibility with solar and battery backup systems. It is designed for everyday residential use where simplicity, safety, and value are the key priorities.
The FAAC S418 is suited for light-to-medium-weight residential swing gate leaves. It is best matched to standard home driveway gates rather than heavy commercial panels. We can confirm the exact weight and length specifications and advise whether the S418 is the right fit for your particular gate.
When connected to a compatible control board with obstacle detection enabled, the S418 will stop and reverse the gate if it encounters resistance during an open or close cycle. For enhanced safety, photocells and safety edges can be added to detect obstructions before contact occurs.
Yes. When paired with a compatible FAAC control board that supports wireless or internet connectivity, the S418 can be managed via a smartphone app, allowing you to open, close, and monitor your swing gate remotely from anywhere with an internet connection.
Yes. The S418 is designed with reliability and longevity in mind, requiring only periodic lubrication of the arm pivot points, inspection of mounting hardware, and occasional testing of safety devices. We recommend an annual service visit to keep the system operating safely and efficiently.
