- Hybrid Technology (Hydraulic + 24V).
- Integrated encoder SAFEcoder with anti-crushing function and reverse upon obstacle detection.
- Opening and closing mechanical stops included.
Family models
| Model | Item code |
|---|---|

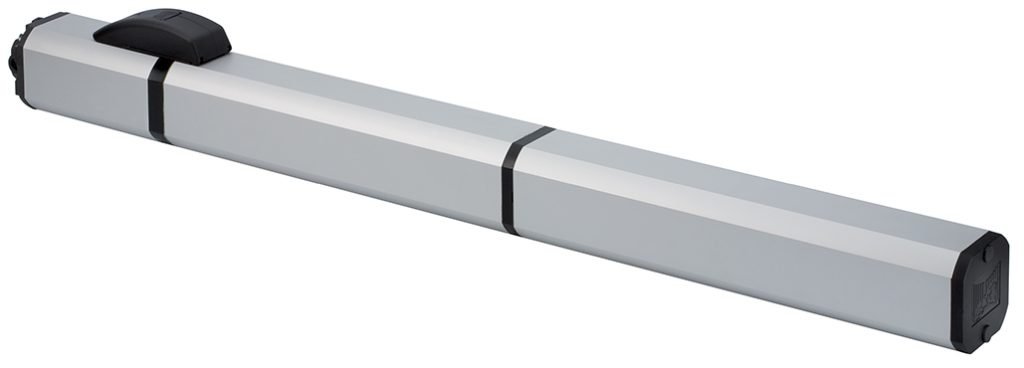

| S450H CBAC | 104100 |
| S450H SB | 104101 |
Packs
S450H includes: a hydraulic operator, accessories for installation, a release key.
Example of a typical installation
| Ref | Q.ty | Description | Code | |
|---|---|---|---|---|
| 1 | 2 | S450H CBAC Operators | 104100 | · |
| 2 | 1 | XLED flashing light | 410029 | · |
| 3 | 1 | Key operated button XK10B | 401304 | · |
| 3 | 1 | Lock with key | 71275101 | · |
| 4 | 1 | E124 Electronic control unit with enclosure | 790284 | · |
| 4 | 1 | XF 433 MHz receiver | 787831 | · |
| 5 | 1 | Pair of photocells XP 20 BD | 785103 | · |
| 1 | 2 channels transmitter XT2 433 SLH LR | 787007 | · |
Dimensions and technical specifications
| Model | S450H CBAC | S450H SB |
|---|---|---|
| Power supply voltage | 220-240V~ 50/60 Hz | |
| Electric motor | With brushes 24V | |
| Max. power | 60 W | |
| Max expressed force | > 5000 N | |
| Rod max speed | >25 mm/sec | |
| Rod travel | 311 mm | |
| Max. leaf opening angle | 110° | |
| Operating ambient temperature | -20°C ÷ +55°C | |
| Protection class | IP55 | |
| Weight | 6.5 Kg | |
| Use frequency | Continuous use | |
| Max. leaf width | 2 m | 3 m |
| Type of oil | FAAC HP OIL | |
| Mounting brackets | Rear multi-position bracket to be screwed – front adjustable to be screwed | |
| Dimensions (LxDxH) | 1131 x 85 x 119 mm | |
| Electronic equipment | Not included |
Add To Cart
Frequently Asked Questions
The FAAC S450H's hydraulic drive delivers smoother, quieter gate movement with fewer vibrations compared to electromechanical alternatives. The hydraulic system also has fewer wear-prone mechanical components, resulting in greater long-term durability and lower maintenance requirements — especially under frequent or heavy use.
Combining hydraulic performance with 24V low-voltage power gives the S450H the best of both worlds — the smooth and powerful operation of a hydraulic system with the safety, flexibility, and solar/battery compatibility of low-voltage operation. This makes it a particularly versatile choice for both connected and off-grid properties.
The FAAC S450H is designed for medium to heavy residential swing gate leaves, offering greater capacity than standard electromechanical 24V operators. Its hydraulic power allows it to handle longer and heavier panels smoothly, making it a premium choice for larger residential driveways and light commercial entrances.
The hydraulic system in the S450H provides consistent performance regardless of temperature extremes — it does not suffer from the thermal expansion and contraction issues that can affect mechanical components. Its sealed, weatherproof housing also protects against moisture and dust, making it well suited to Sydney's varied coastal and inland weather conditions.
Yes. Two S450H operators can be installed as a pair for double swing gate applications and synchronised through a compatible FAAC control board. The hydraulic mechanism ensures both leaves open and close with the same smooth, consistent movement, providing a premium appearance and performance for wider gate entrances.
