Family models
| Model | Description | Item code |
|---|---|---|

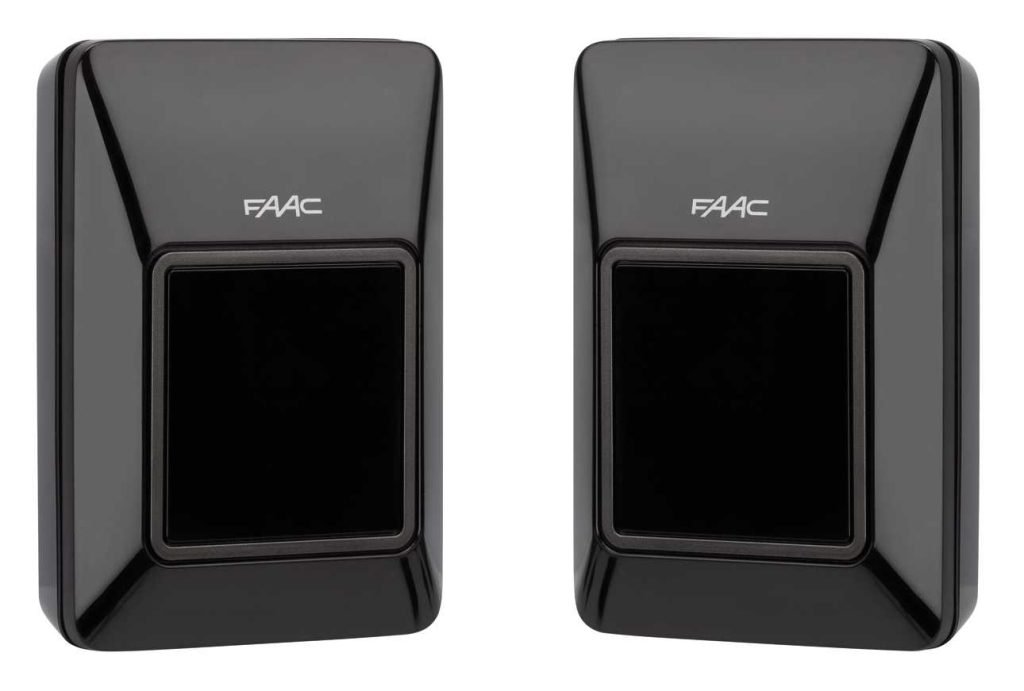

| XP 30B INOX | Wall photocell | 7851061 |
| XP 30B | Wall photocell | 785106 |
Dimensions and technical specifications
| Model XP | 30B INOX |
|---|---|
| Power supply voltage | BUS 2easy, with 2 non polarized wires 24V |
| Photocells max distance | 30 m |
| Installation type | wall/column |
| Protection class | IP54 |
| Alignment | Automatic |
| Auto-alignment angle | ± 7° (20m) ± 13,5° (5m) |
| Dimensions (LxDxH) | 55,4 x 21,5 x 78,4 mm |
| Absorbed current | Rx (25 mA) + Tx (15 mA) |
| Operating ambient temperature | -20°C ÷ +55°C |
Add To Cart
Frequently Asked Questions
The XP 30B is designed for automated gate and access control systems, offering reliable operation for residential, commercial, and light industrial environments.
Yes, the XP 30B is built for consistent performance under frequent use, making it suitable for medium to high-traffic gate automation applications.
The XP 30B can often be integrated with compatible systems, but it is important to verify technical compatibility before installation for smooth operation.
Yes, professional installation is recommended to ensure correct configuration, safe operation, and optimal performance of the XP 30B system.
Routine maintenance such as periodic inspections, cleaning, and timely servicing helps maintain efficiency and extends the lifespan of the XP 30B.
