Family models
| Model | Description | Item code |
|---|---|---|
| CUSTOMISED KIT
Safety edge up to 2.5 m |
XS10 SAFETY EDGE KIT (L=2.5M)* | 105536 |
| XS30 SAFETY EDGE KIT (L=2.5M)* | 105538 | |
| XS55 SAFETY EDGE KIT (L=2.5M)* | 105531 | |
| XS85 SAFETY EDGE KIT (L=2.5M)* | 105547 | |
| *THE KIT CONTAINS:
1 rubber profile XS 2.5m; 1 terminal with XSP R8.2 resistance; 1 terminal with XSP C0.5 cable; 1 aluminum profile for XS 2.5m |
||
- Plug and Play conductive rubber safety edge 8,2 Kohm
- Easier assembly due to the innovative solution with mechanically coupled terminals (except XS10)

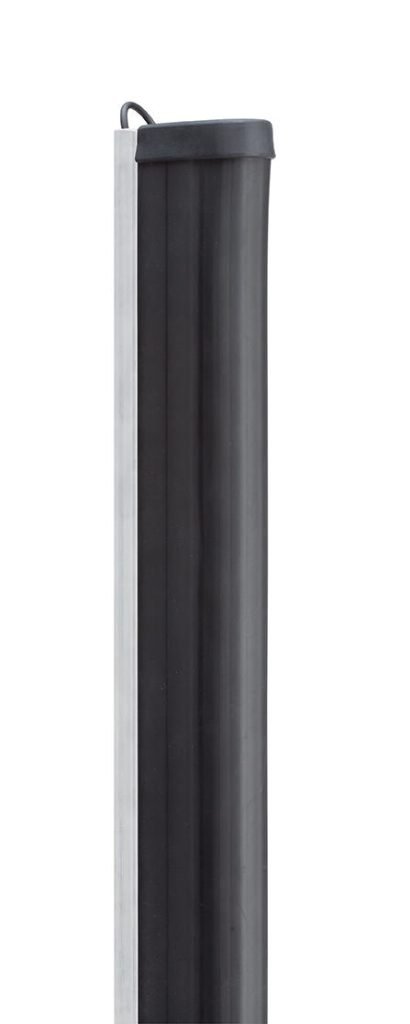

- Rubber profile heights 10mm/30mm/55mm/85mm
- Aluminium support profile
- Obstacle detection with +/- 45° angles
- Protection class IP 65
- Available in KIT VERSION (for more than one safety edge) or in CUSTOM KITS (for one safety edge up to 2,5 m)
- The XS edges need a CN 60 E control unit or the radio system of the edges
Installation examples
1.Cut the rubber profile to the desired length.
The cut must be precise to ensure correct coupling with the terminals; it is recommended to use a cutter that holds the profile in position.

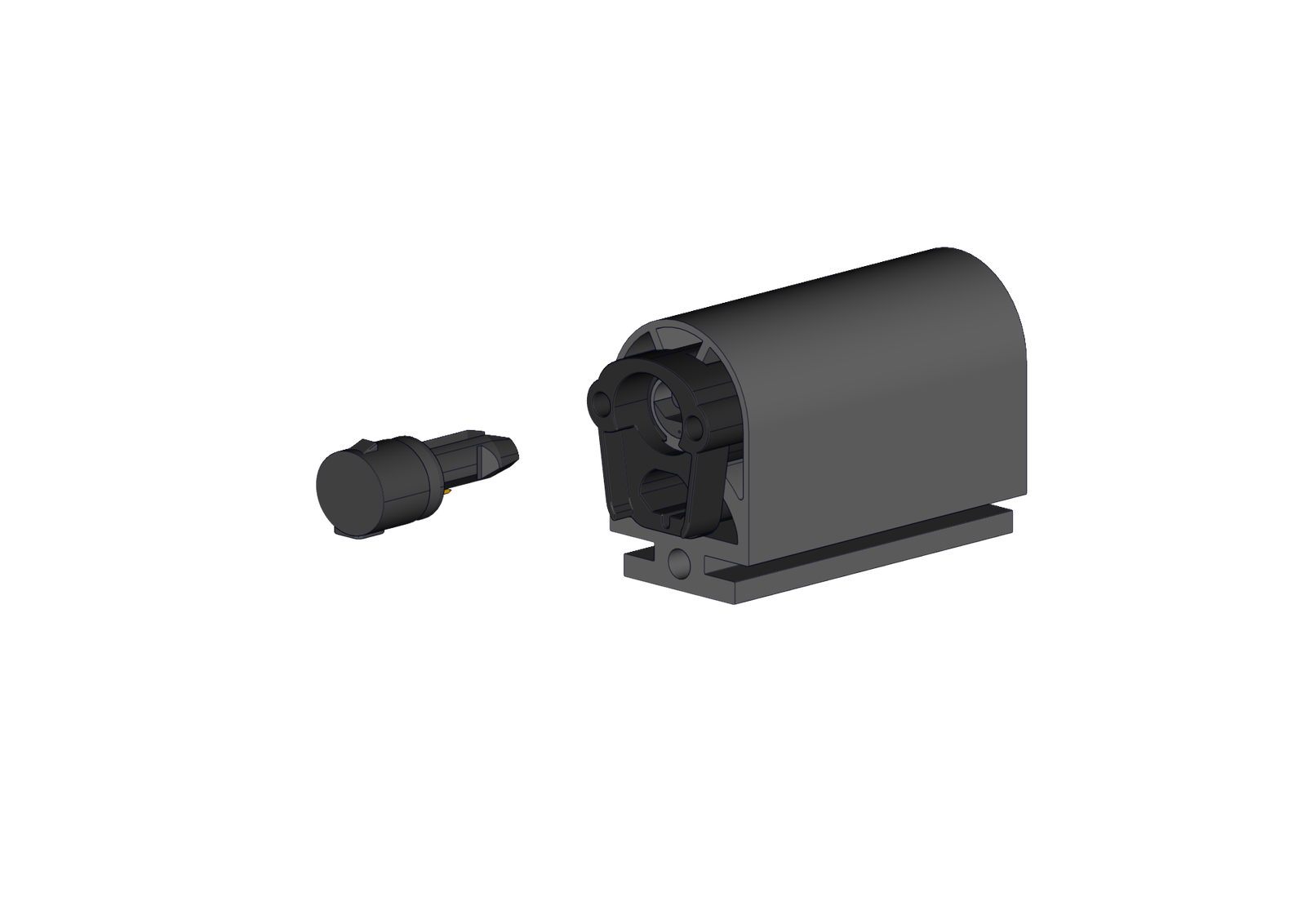

2.Remove the 8K2 resistance.

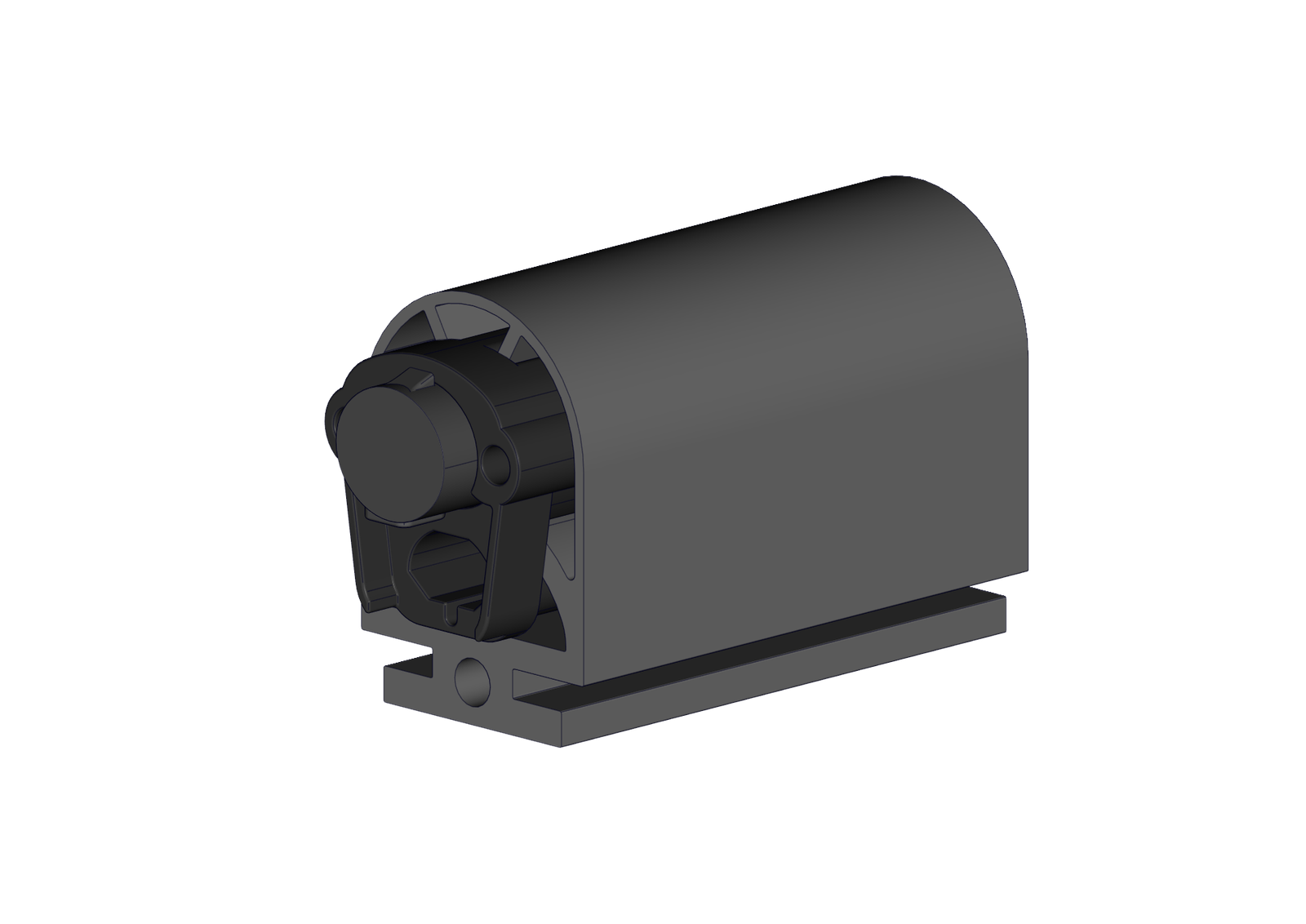

Insert the support as far as it will go.

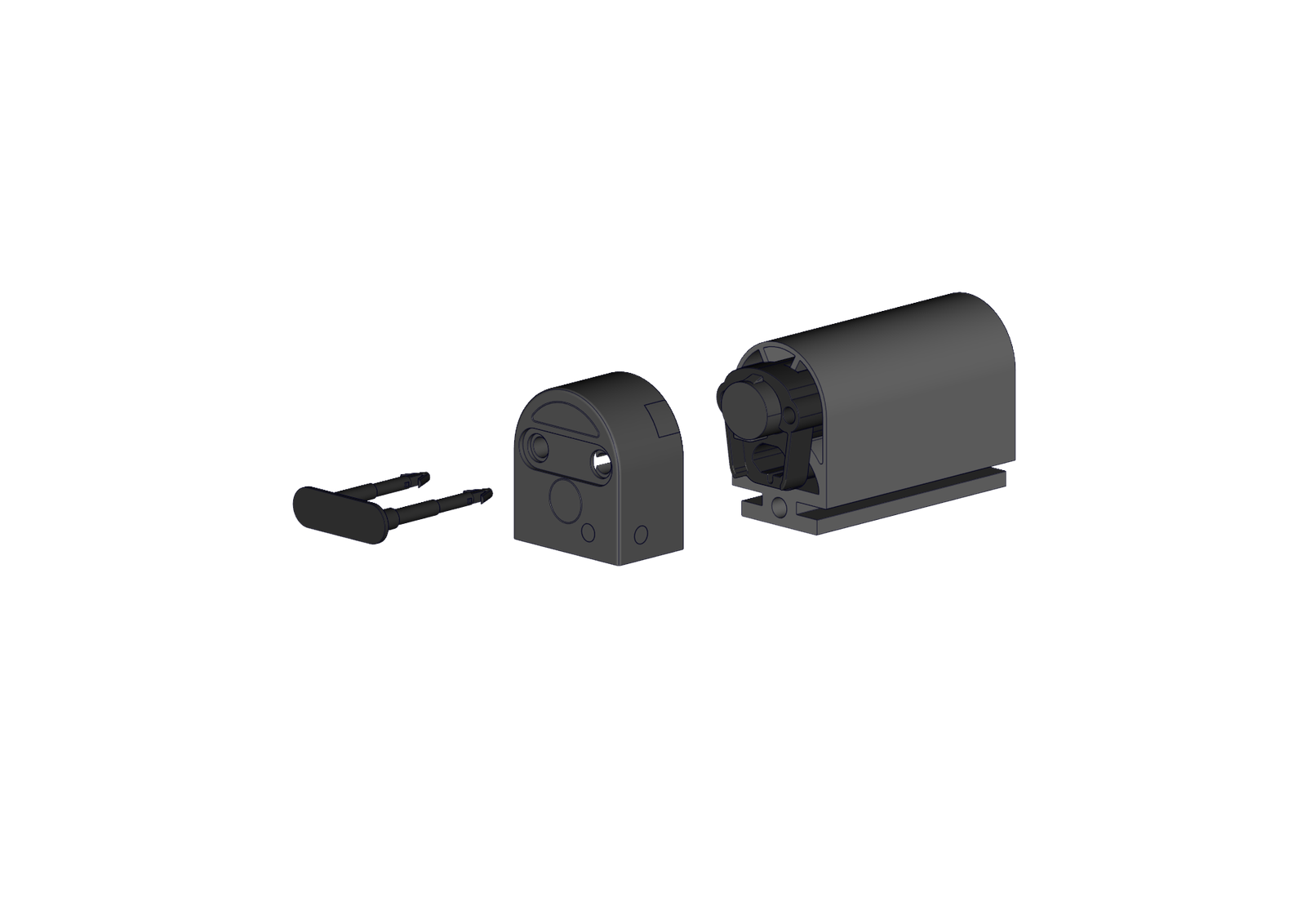

3.Insert the terminal as far as it will go into the support.

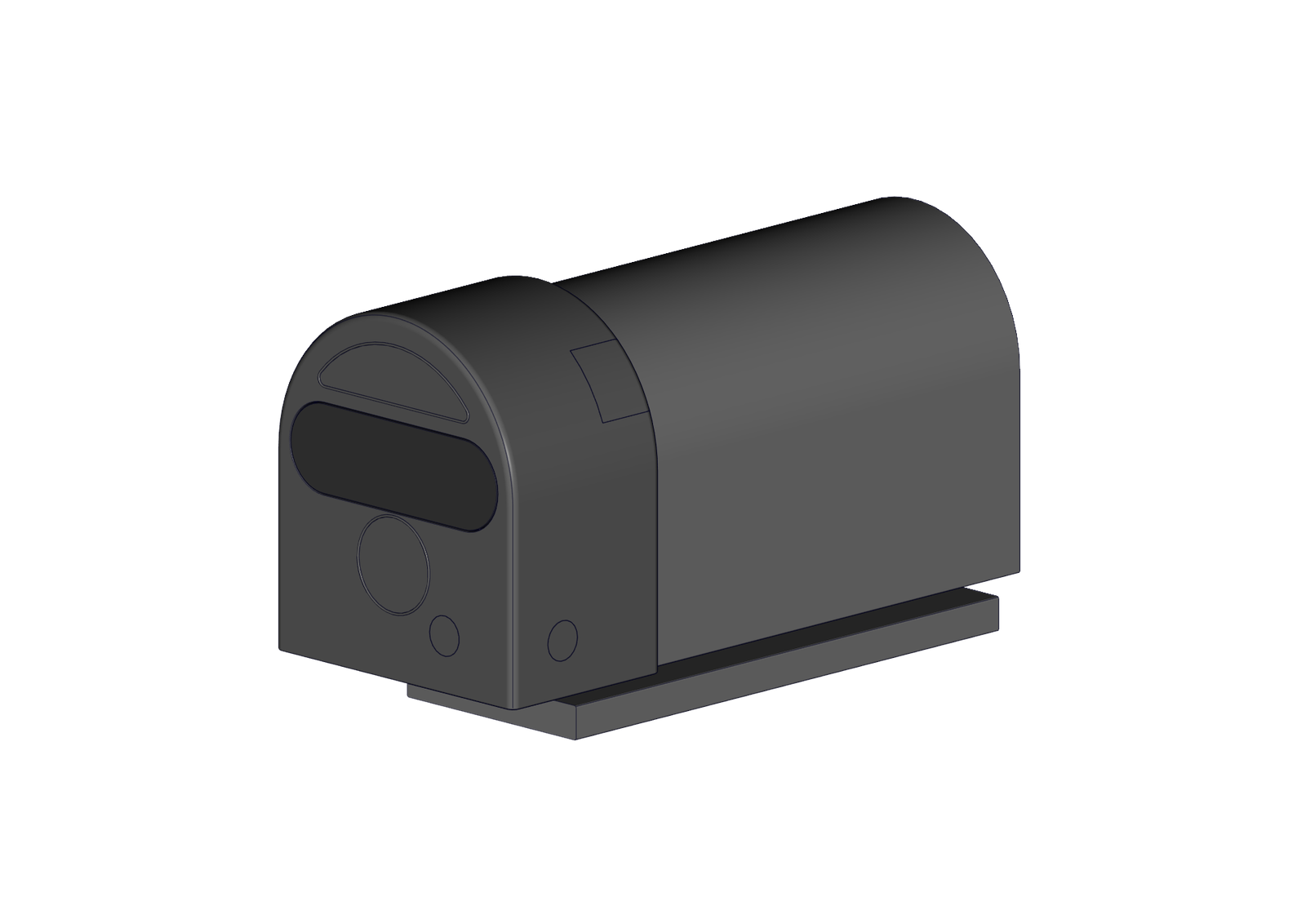

4. Insert the cover into the rubber profile by engaging the coupling with the press on seat.
The conductive rubber edge is ready to be fixed on the aluminium supporting profile.
Frequently Asked Questions
The XS safety edge is designed to enhance the safety of automated gates by detecting obstacles during gate movement. When activated, it signals the control system to stop or reverse the gate to help prevent accidents.
Yes, the XS safety edge can be integrated into various gate automation setups when paired with compatible control units or radio safety systems designed to support resistive safety edges.
The XS range is available in multiple rubber profile heights, including 10 mm, 30 mm, 55 mm, and 85 mm. This allows installers to choose a solution that best suits the requirements of the gate system.
Yes. The XS safety edge features an IP65 protection rating, making it resistant to dust and water ingress commonly encountered in outdoor environments.
The XS range incorporates a plug-and-play design with mechanically coupled terminals, helping streamline the installation process and reduce setup time compared to more complex safety edge configurations.
